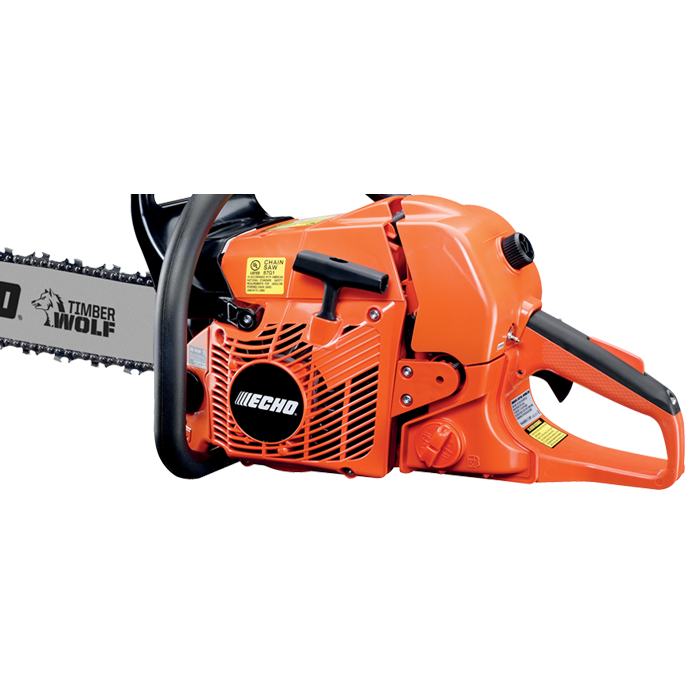

CS-590 Timber Wolf Features
- 59.8cc professional-grade, 2-stroke engine for outstanding performance
- Automatic, adjustable clutch-driven oiler for reduced oil consumption
- Decompression valve for easier stater rope pulling
- Easy-access, heavy-duty two-piece air filter for easy cleaning
- G-Force Engine Air Pre-Cleaner™ for reduced filter maintenance
- Translucent fuel tank for quick fuel level checks
CS-590 Timber Wolf Specifications
| Engine Displacement (cc) |
59.8 |
Oil Capacity (fl oz) |
10.2 |
| Engine Displacement (cu in) |
3.64 |
Dry Weight (lbs)1
|
13.2 |
| Starting System |
Standard |
Sprocket Cover |
Plastic |
| Ignition System |
Digital |
Bar Type |
Pro-Lite w/ ProAm material |
| Carburetor |
Butterfly-Valve Diaphragm (without purge pump) |
Sprocket Type |
Spur |
| Oiling System |
Automatic/Adjustable (Clutch-Driven) |
Handle |
Plastic |
| Vibration Reduction System |
Standard |
Consumer Warranty |
5 years |
| Available Bar Lengths (in) |
18, 20, 24 |
Commercial Warranty |
1 years |
| Fuel Capacity (fl. oz.) |
21.8 |
|
|
