A TRUE COMMERCIALQUALITY MOWER BUILT FOR PROFESSIONALS.
This is the Pro-Turn 500. A commercial-grade mower for professionals who want rugged durability without sacrificing features and performance. Better seating, better tires, better mowing deck, and a better transmission make the PRO-TURN-500 the better choice.

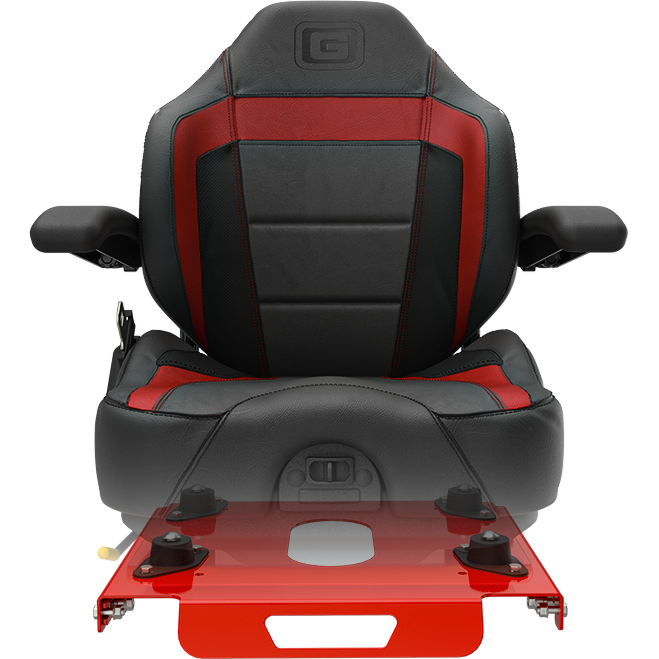

Comfortable Air-Ride Seat!
FULLY WELDED TUBULAR FRAME One glance and you can see its strength and ruggedness. Its wide front rail distributes weight for superior balance. It also supports the deck lift for easy engagement. Includes a limited lifetime warranty.

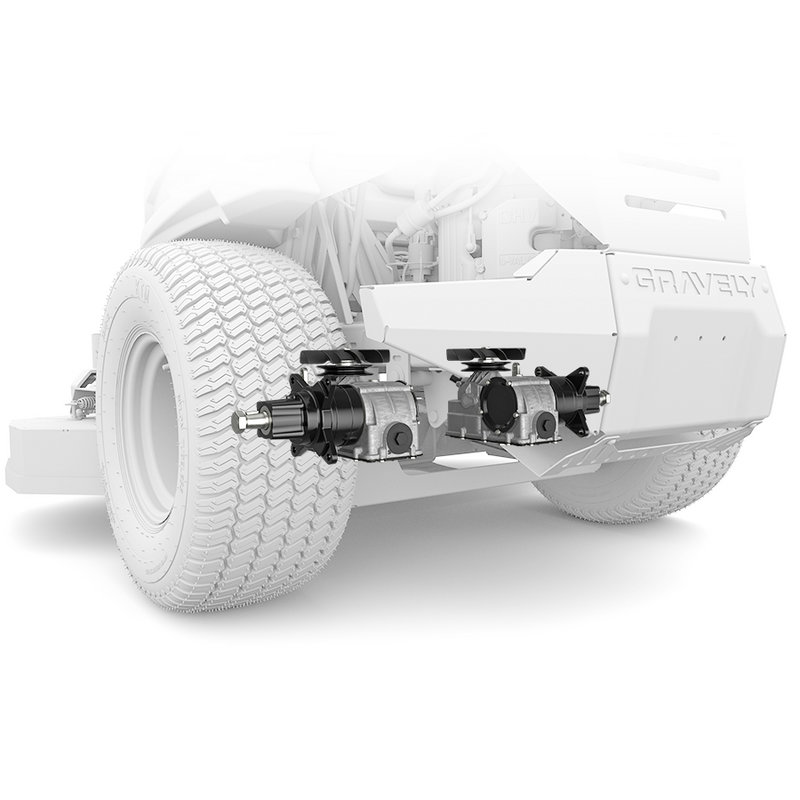

PARKER TRANSAXLES Parker HTG transaxles deliver a top speed of 15mph and have a 16cc pump. Filters are easily accessed from the rear for easy maintenance.
X-FACTOR® 3 DECK Made with 7-gauge steel and specially designed for better grass dispersion thanks to its larger discharge opening, integrated baffles, and sloped front end. Reinforced spindle mounts protect blade operation while the six recessed anti-scalp wheels protect the turf on uneven terrain. Its flip-up rubber chute makes it easy to drive through gates and around obstacles. A 5/8” leading edge provides extra protection to the shell while stabilizer links keep vibration to a minimum. Includes a limited lifetime warranty. DIAL HEIGHT ADJUSTMENT The dial wheel allows easy height adjustment between one and five inches.
Toolless adjustable foot pedal with internal assist springs helps lift the deck with little effort.
| ENGINE |
Kawasaki® FX921V |
|
|
| ENGINE DISPLACEMENT |
61.00 in / 999.00 cc |
|
|
| DRIVE SYSTEM |
Hydrostatic |
|
|
| TRANSMISSION TYPE |
Hydrostatic |
|
|
| BRAKE TYPE |
Lever Activated Parking |
|
|
| FUEL SYSTEM |
Gas |
|
|
| FUEL CAPACITY |
12.50 gal / 47.30 ltr |
|
|
| DRIVER POSITION |
Sit |
|
|
| GROUND SPEED FORWARD |
15.00 mph / 9.30 kph |
|
|
| GROUND SPEED REVERSE |
6.00 mph / 3.70 kph |
|
|
| BATTERY CAPACITY |
300 CCA |
|
|
| NUMBER OF BATTERIES |
1 |
|
|
| BATTERY VOLTAGE |
12 |
|
|
| BATTERY TYPE |
Lead Acid - Maintenance Free |
|
|
| BATTERY SIZE |
U1 |
|
|
| DECK SIZE |
60 in / 152.40 cm |
|
|
| COVERAGE HOUR |
9.00 acres / 3.60 hectares |
|
|
| SPINDLE TYPE |
Mechanical |
|
|
| DECK MATERIAL |
7 ga |
|
|
| DECK CONSTRUCTION |
Fabricated X-Factor® 3 |
|
|
| DISCHARGE CONFIGURATION |
Side |
|
|
| CUTTING WIDTH |
60.00 in / 152.40 cm |
|
|
| REAR WHEEL DIAMETER |
26.00 in / 66.00 cm |
|
|
| REAR WHEEL WIDTH |
12.00 in / 30.50 cm |
|
|
| REAR WHEEL RIM DIAMETER |
12.00 in / 30.50 cm |
|
|
| FRONT WHEEL DIAMETER |
15.00 in / 38.10 cm |
|
|
| FRONT WHEEL WIDTH |
6.00 in / 15.20 cm |
|
|
| WEIGHT |
1487.00 lb / 674.40 kg |
|
|
| LENGTH |
84.00 In / 213.40 cm |
|
|
| WIDTH |
60.00 in / 152.40 cm |
